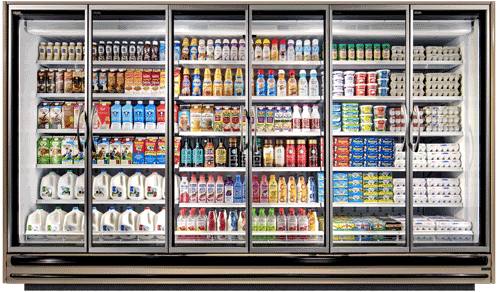

Overview of the Reveal Merchandiser Multi-Decks with Doors
Beverages
Dairy
Deli
Fresh Meat
Produce
Fresh Bakery
Seafood & Floral
With rising energy costs, retailers asked for a multi-deck case option with doors. Zero Zone answered by adding appealing French-swing doors to the already-popular Reveal Merchandiser®.
Distinctive Features of the Reveal Merchandiser Multi-Decks with Doors

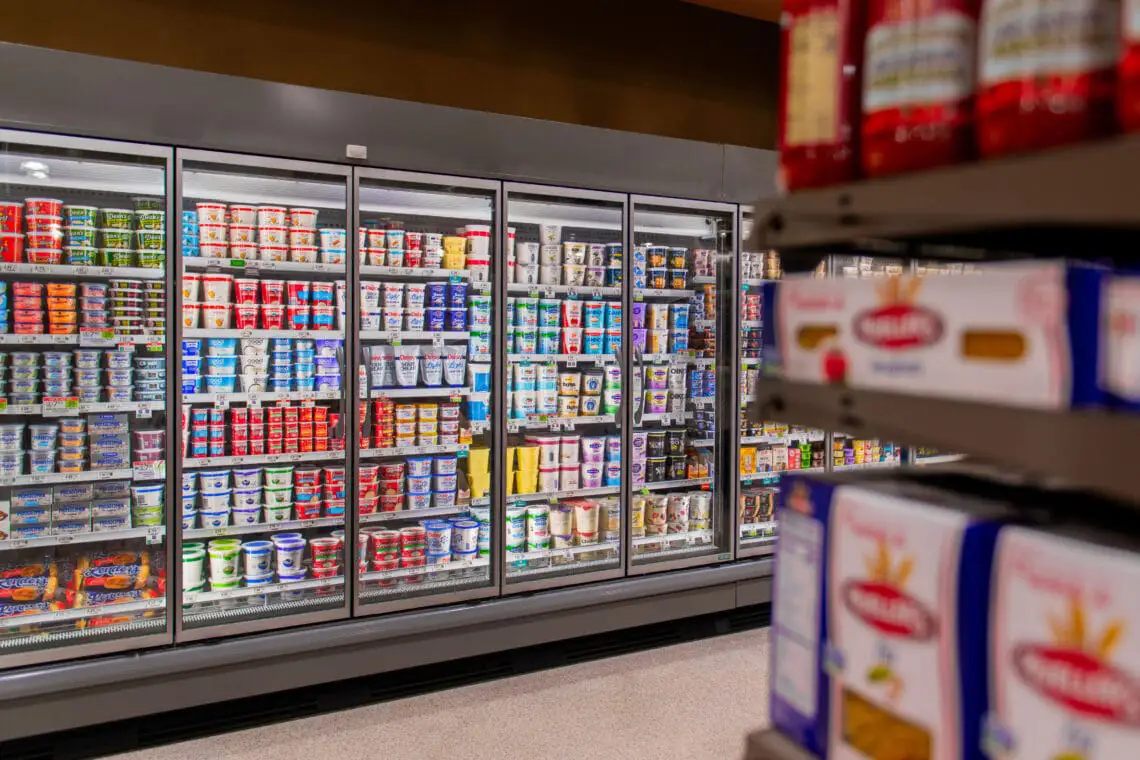

With the Reveal Merchandiser® with doors, retailers create a continuous, elegant display storewide while enjoying maximum facings and pack-out potential. The CoolView® Ultra French-swing doors come in either 83” or 88” height to create an appealing appearance that shoppers find inviting.
Innovative Product Lighting
Efficient ChillBrite LED vertical lighting for the brightest, most even, reliable product illumination on the market. Canopy lighting rotates to any position to maximize product appeal
Merchandising Deck
30” deep merchandising deck with bottom mounted coil that aids in raising product higher for easy reaching.
Cutting Energy Costs
Built to save energy costs through features like efficient door design and LED lighting, helping our customers lower their energy expenses while maintaining optimal product display conditions.

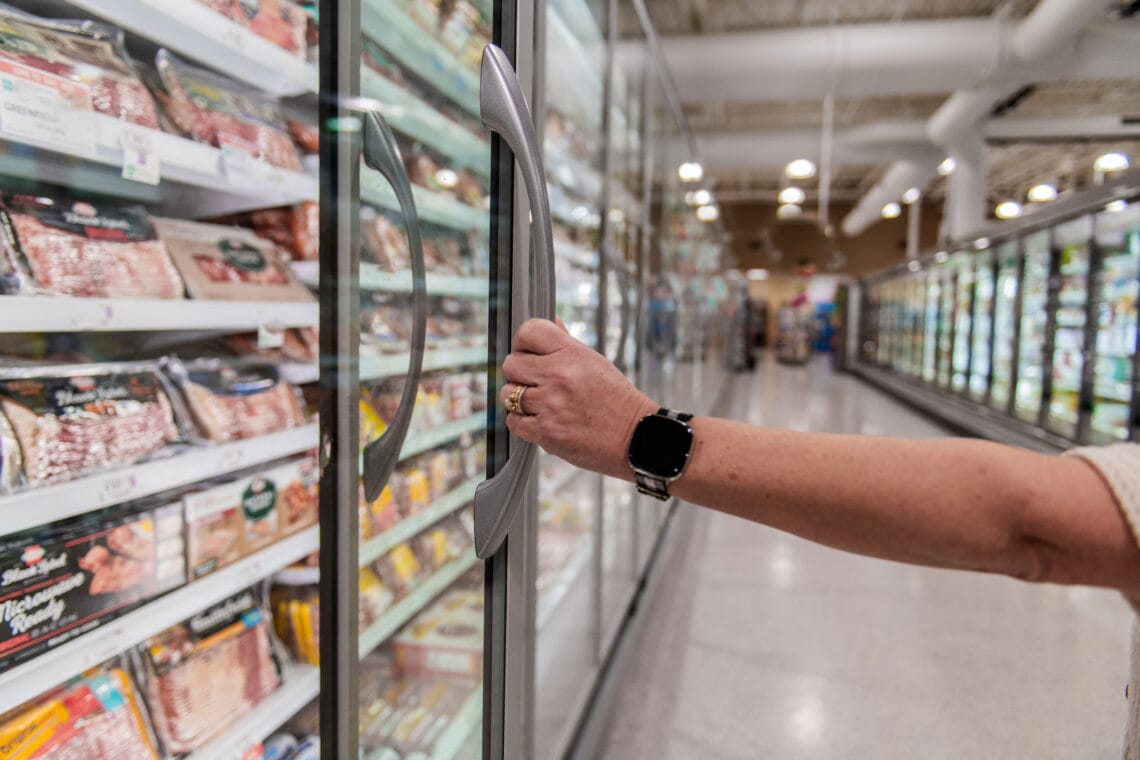

French-swing Doors
The attractive French-swing doors keep the cold in and provide significant energy savings.
Shelving
Rugged adjustable shelving, epoxy finish for durability. Multiple tilting options, product stops, price tag molding and attractive design.
Planning Options
Available with 48” wide or 24” wide shelves to suit the merchandising requirements of the project.
Easy Installation
Easy to Install with superb case to case fit and finish.
Available as a Hybrid™
The Reveal Merchandiser® is also available as a Hybrid™ display case with an easy-to-install, top-mount refrigeration kit.
Standard Features & Optional Features
Enhance your experience with a range of optional features tailored to your unique needs.
Features |
Standard |
Options (available on most cases) |
|---|---|---|
Exterior Color |
Black
|
36 colors |
Interior Color |
Black |
Brushed Stainless Steel, Black or White E-coat (Seafood & Red Meat), Galvanized
|
Door Type |
Cool View® Ultra Black |
Cool View® Ultra White |
Kickplates |
Flat (Black) |
Louvered (Black) |
Interior Lighting |
Chill Brite 4000K |
Chill Brite 3500K, Chill Brite 3000K |
Shelving Brackets |
2-position (0° or 10°) |
4-position (0°, 5°, 10°, or 15°) |
Refrigerant |
R448A |
Glycol, CO2 (45-bar and 90-bar), HFC |
Refrigeration Connection |
Inside Case Bottom |
Refrigeration Out Top Back |
Electrical Connection |
EOBR (Electric out Bottom Right) |
EOT (Electric Out Top) |
Expansion Valve |
Mechanical |
Electronic |
Model
Structure & Sizing Options
Length
We offer multiple case length options for the Reveal Merchandiser Open Multi-Deck: 4', 6', 8', and 12'. This allows customers to choose the right size for their specific needs.
Doors
Our Reveal Merchandiser comes with CoolView® Ultra™ French-swing doors. These doors offer excellent visibility, inherent energy savings, and convenient access for your merchandising needs.
Case Height
We offer cases in 2 heights (83"and 88"). This lets you choose based on your space, style, and function needs. Whether you want compact or tall cases for increase product variety, our options help you create the best shopping experience while upholding our quality.

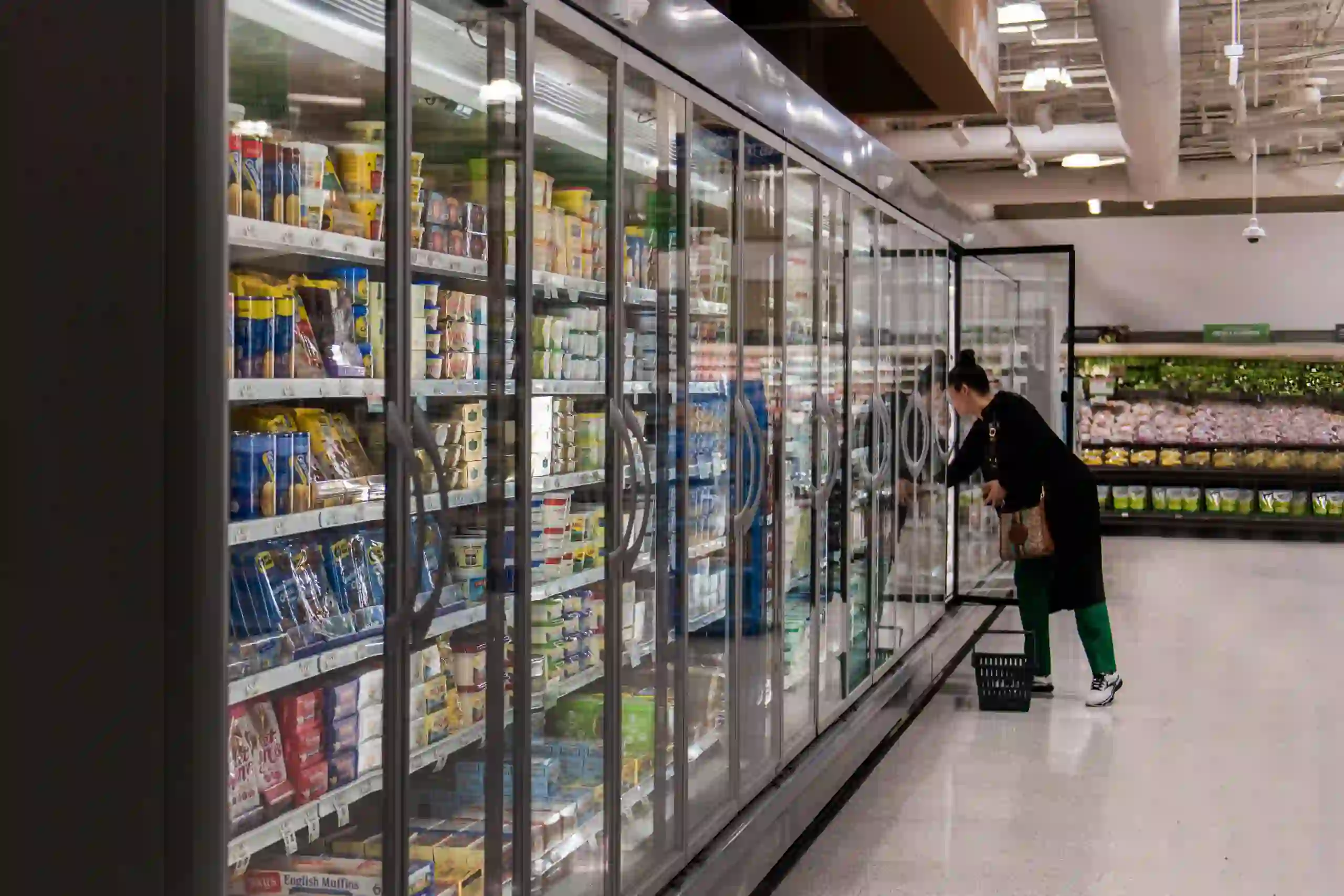

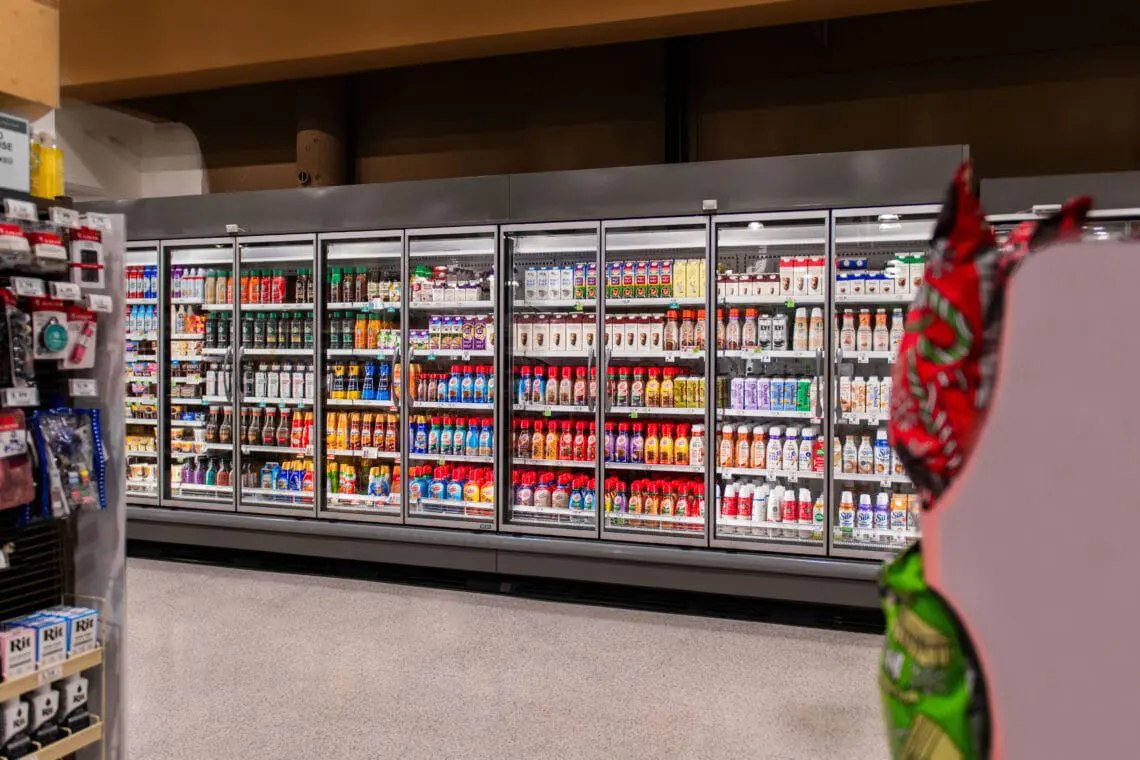

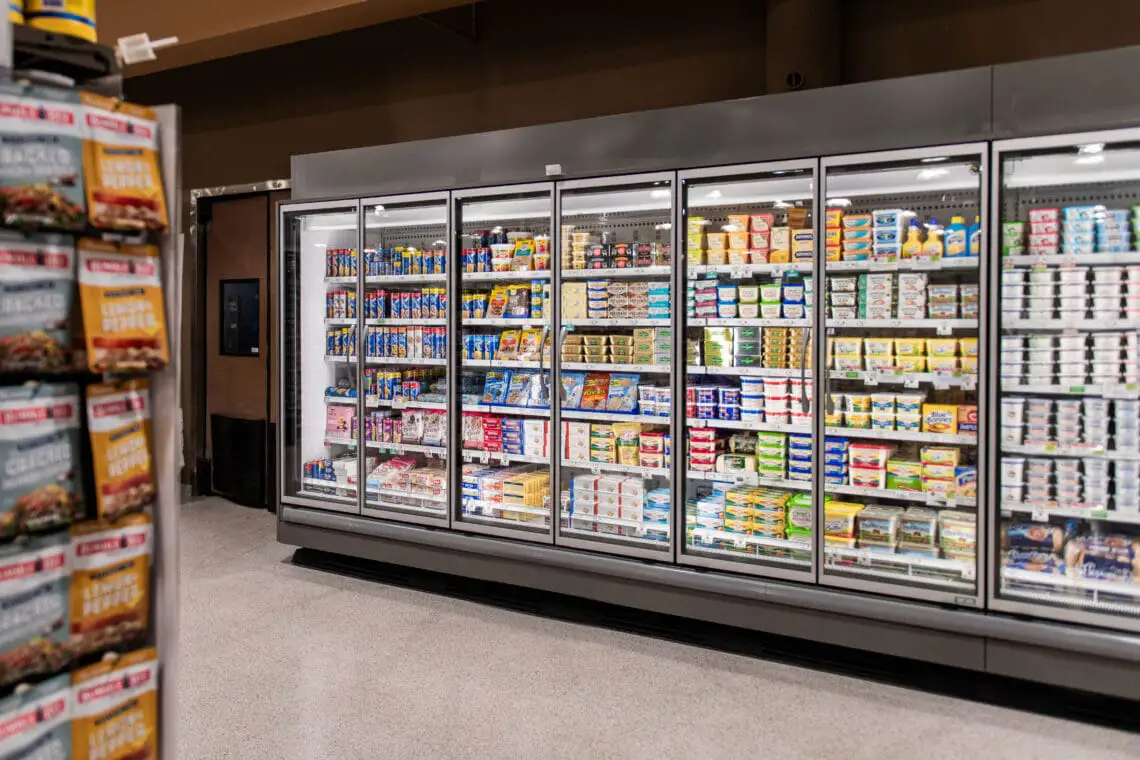

ORMC83D only

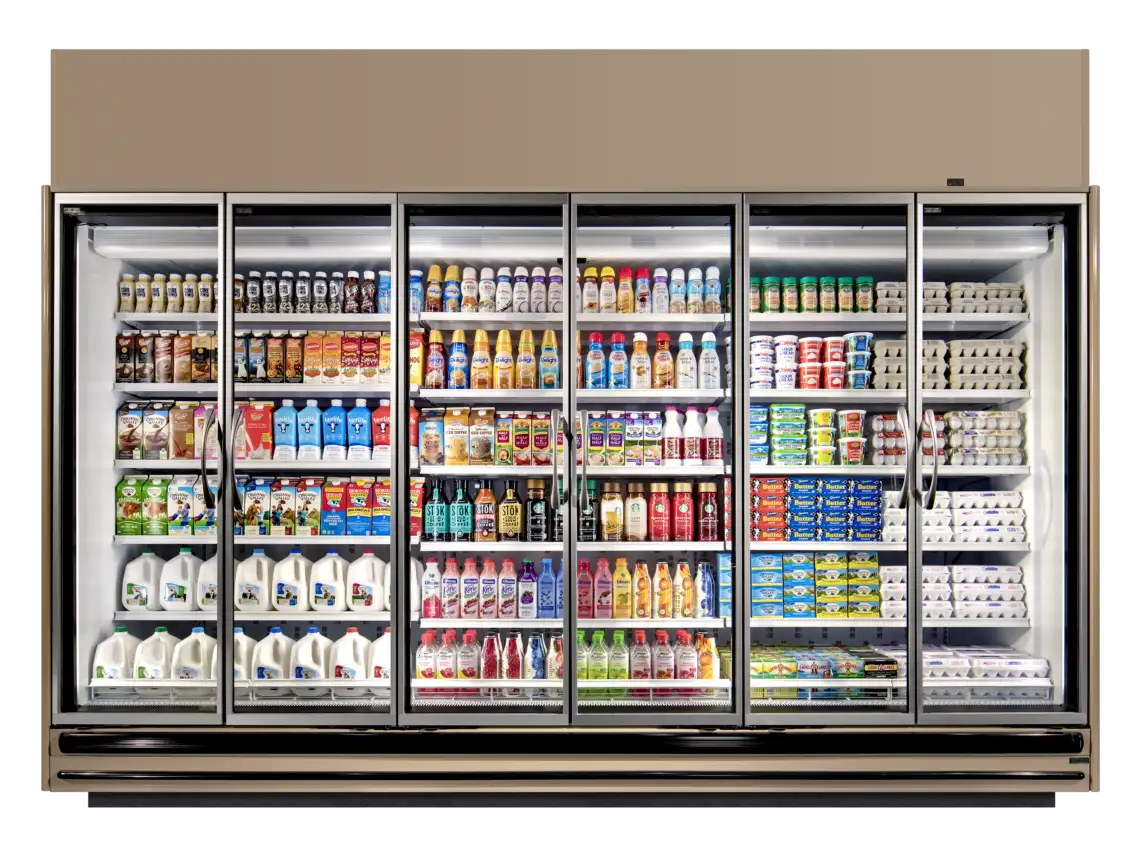

Hybrid™ Open Multi-Deck
Eliminate the need for a refrigeration system in your back room with a field-installed top-mount condensing unit kit. A Hybrid™ display cases allow for superior accessibility, making installation and maintenance simple.
Resources
Reveal Merchandiser® Revit Files
Manuals
Reveal Merchandiser® Display Cases
Hybrid™ Display Cases
Compare
Comparison to other product families
Highlight Cooler |
Highlight Cooler French Doors |
Crystal Cooler |
Crystal Cooler French Doors
|
Reveal Multi Deck w/ Doors |
|
| Overview | Our workhorse cooler to meet your varied needs | Workhorse cooler and easy access to product with French Doors | The modern design and options add functionality to your display | Merchandise your product to the fullest with French doors | A unique solution tailored to enhance your retail environment |
| Applications | Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral | Daily/Deli, Beverage, Produce | Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral | Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral | Daily/Deli, Beverage, Produce, Fresh Meat, Fresh Seafood, Floral |
| Design Style | Classic | Classic | Contemporary | Contemporary | Transitional |
| No of doors | 1,2,3,4,5 | 2,3,4,6 | 2,3,4,5 | 2,3,4,6 | 2,3,4,6 |
| Door Width | 30″ | 24″ | 30″ | 24″ | 24″ |
| Door Height | 68″ | 68″ | 74″ | 74″ | 69″ |
| Facings (5/6 door) | 68.2 ft 2 | 64.5 ft 2 | 74.4 ft 2 | 69.8 ft 2 | 63.4 ft 2 |
| Packout (5/6 door) | 136.4 ft 3 | 118.3 ft 3 | 146.8 ft 3 | 133.4 ft 3 | 132.1 ft 3 |
| Tall Option | Yes (73″ door) | No | No | No | Yes (74″ door) |
| Hybrid Option | Yes | No | Yes | Yes | Yes |
| Rear Load | No | No | Yes | Yes | No |
| Back-to-Back | No | No | No | No | No |
| Ultra Narrow | No | No | No | Yes | No |
| Back-to-Back Ultra Narrow | No | No | No | Yes | No |
| Back-to-Back Tall | Yes | No | No | No | No |
| Deep | No | No | Yes | Yes | No |
| High Humidity | Yes | No | Yes | Yes | No |
Responsible Energy Conservation
Zero Zone dares to present customers with a unique value proposition: quality products that require fewer resources to assemble, use less energy, last longer, and have lessened environmental impact, both during manufacture and in actual use. Our goal is to be the leader in sustainable refrigeration and living up to our name we want to do ZERO harm to the environment and use refrigerants with ZERO ozone depletion.
Zero Zone is proud to be a part of the U.S. Environmental Protection Agency’s (EPA) Advanced Refrigeration Partnership for over 15 years. We are also proud Gold Member and supporter of the North American Sustainable Refrigeration Council (NASRC).
